Toyota 4Runner Service Manual / Steering / Steering Column / Steering Lock System / Parts Location

PARTS LOCATION

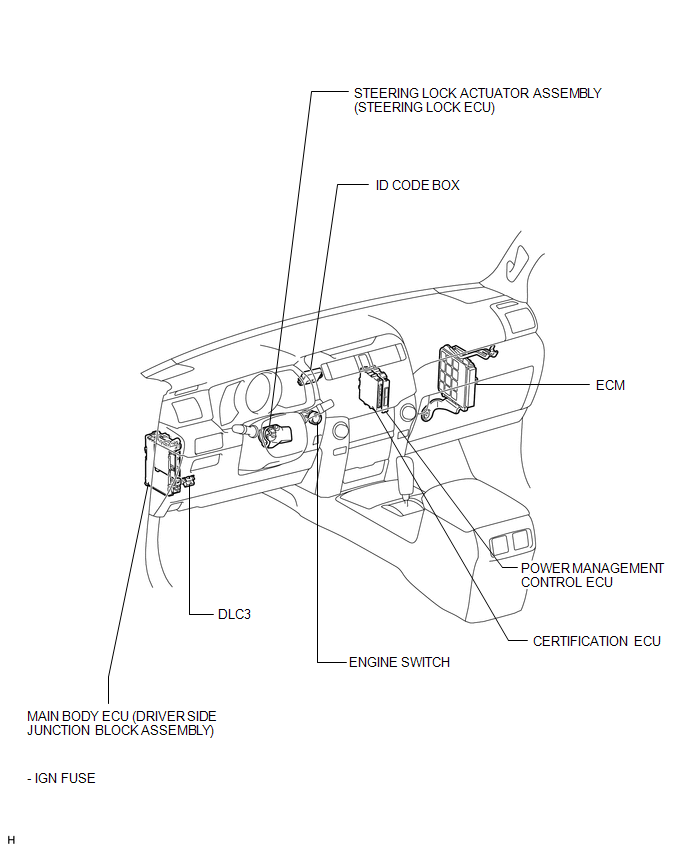

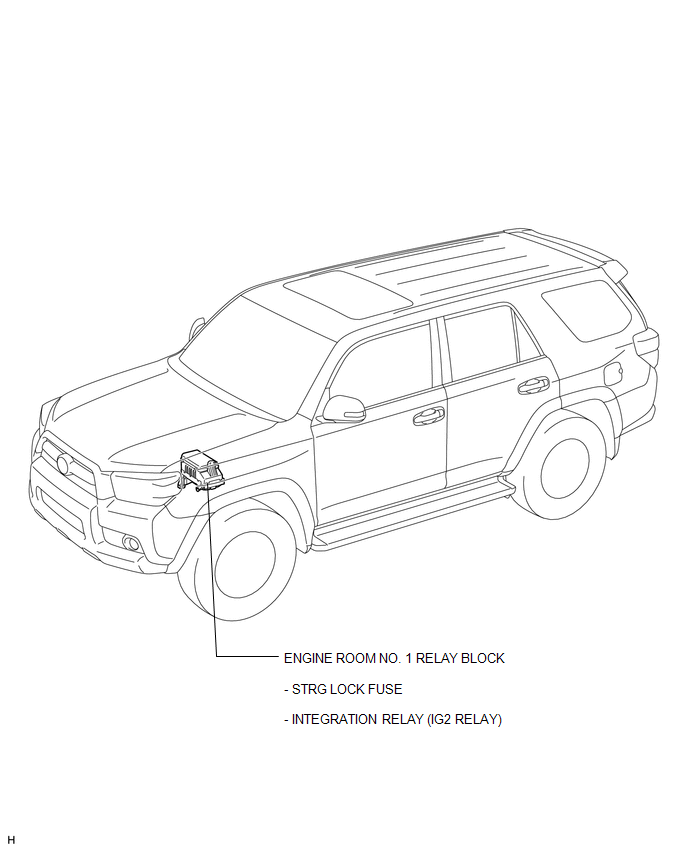

ILLUSTRATION

Precaution

PRECAUTION 1. PRECAUTIONS WHEN WORKING ON ELECTRIC STEERING LOCK (a) After replacing the steering lock actuator assembly (steering lock ECU), perform key ID code registration. (b) After replacing ...

System Description

SYSTEM DESCRIPTION 1. DESCRIPTION (a) The steering lock system locks or unlocks the steering by activating the steering lock bar with a motor. The steering lock ECU activates the motor based on ...
