Toyota 4Runner: Parts Location

Toyota 4Runner Service Manual / Suspension / Tire Pressure Monitoring / Tire Pressure Warning System / Parts Location

PARTS LOCATION

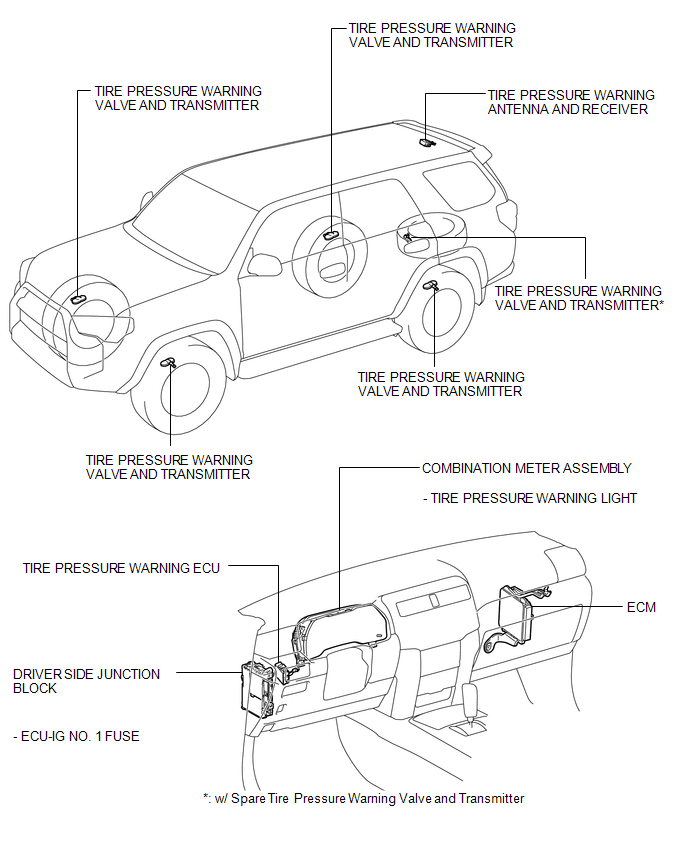

ILLUSTRATION

Precaution

PRECAUTION 1. TIRE PRESSURE WARNING ECU EXPRESSIONS (a) The tire pressure monitor receiver assembly is referred to as the tire pressure warning ECU in this section. 2. TIRE PRESSURE WARNING SYSTE ...

System Diagram

SYSTEM DIAGRAM HINT: The tire pressure warning valve and transmitter sends information on the temperature inside the tire, ID and tire pressure. ...
