Toyota 4Runner: System Diagram
Toyota 4Runner Service Manual / Suspension / Tire Pressure Monitoring / Tire Pressure Warning System / System Diagram

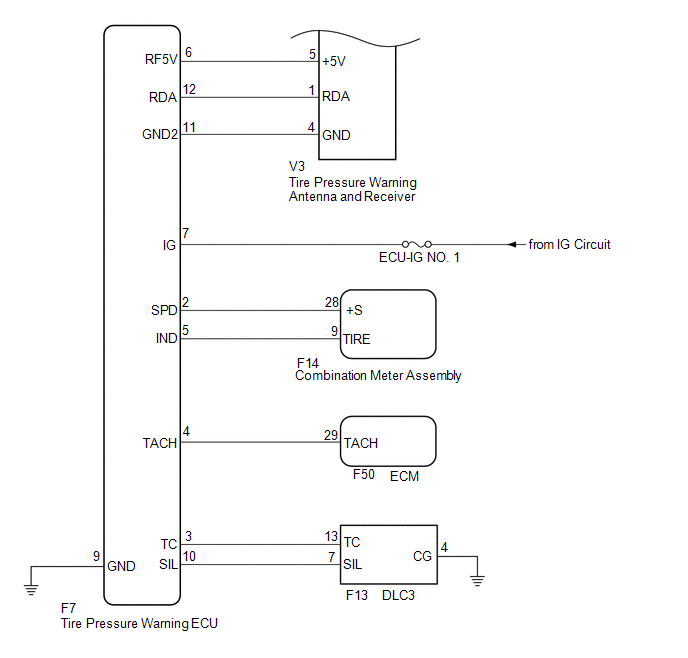

SYSTEM DIAGRAM
HINT:

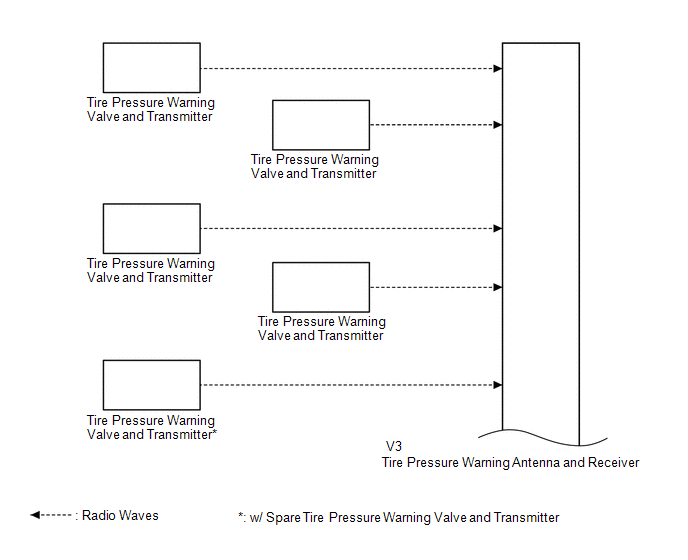

The tire pressure warning valve and transmitter sends information on the temperature inside the tire, ID and tire pressure.
Parts Location
PARTS LOCATION
ILLUSTRATION
...
System Description
SYSTEM DESCRIPTION
1. DESCRIPTION OF SYSTEM
(a) When the tire pressure warning system detects that the tire pressure of a
tire is below the threshold, it illuminates the tire pressure warning ligh ...
