Toyota 4Runner Service Manual / Power Source / Network / Networking / Lin Communication System / Parts Location
PARTS LOCATION

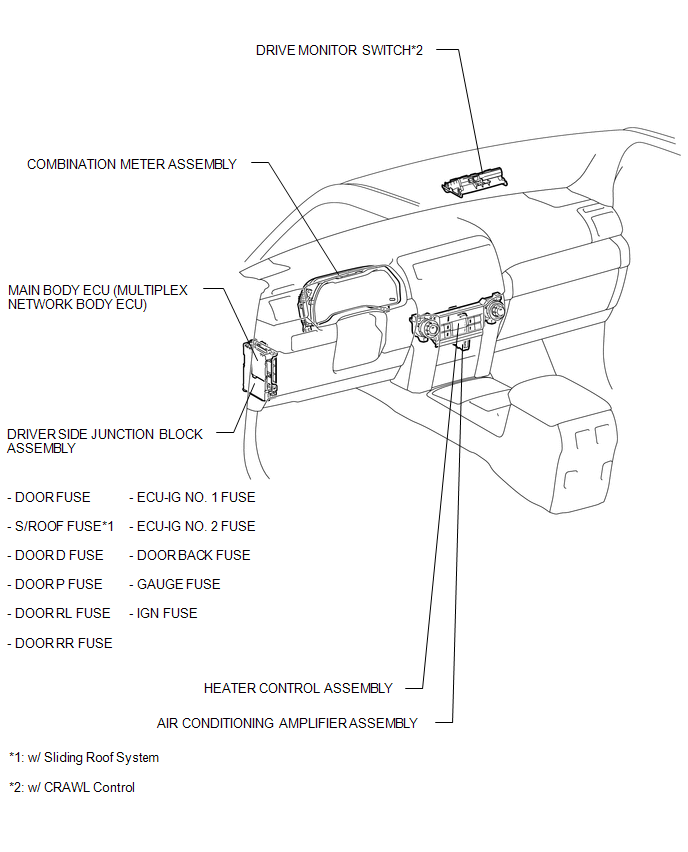

ILLUSTRATION

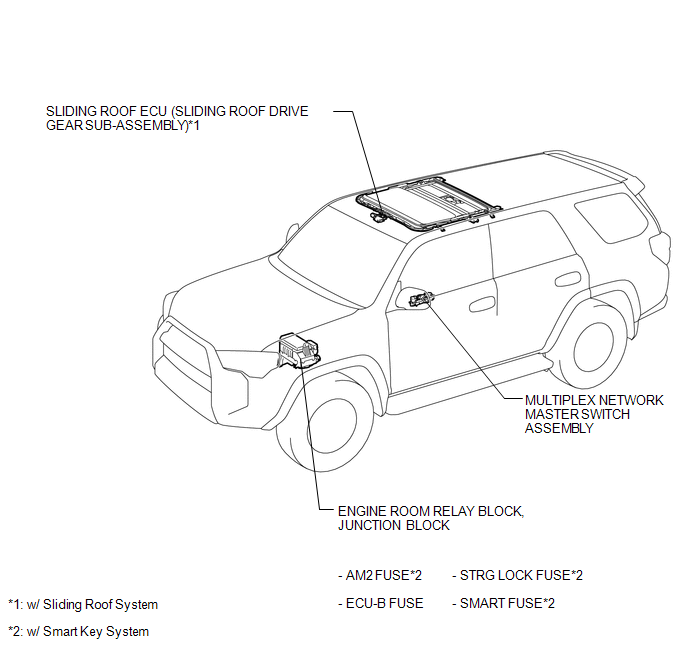

ILLUSTRATION
ILLUSTRATION
ILLUSTRATION
Precaution
PRECAUTION
1. IGNITION SWITCH EXPRESSION
HINT:
The type of ignition switch used on this model differs according to the specifications
of the vehicle. The expressions listed in the table below are ...
System Diagram
SYSTEM DIAGRAM
1. DOOR BUS LINES
2. CERTIFICATION BUS LINES (w/ Smart Key System)
3. AIR CONDITIONING BUS LINES
4. SUB-LIN BUS LINES
5. DRIVE MONITOR SWITCH BUS LINES (w/ CRAWL Control)
...
