Toyota 4Runner: System Diagram
SYSTEM DIAGRAM

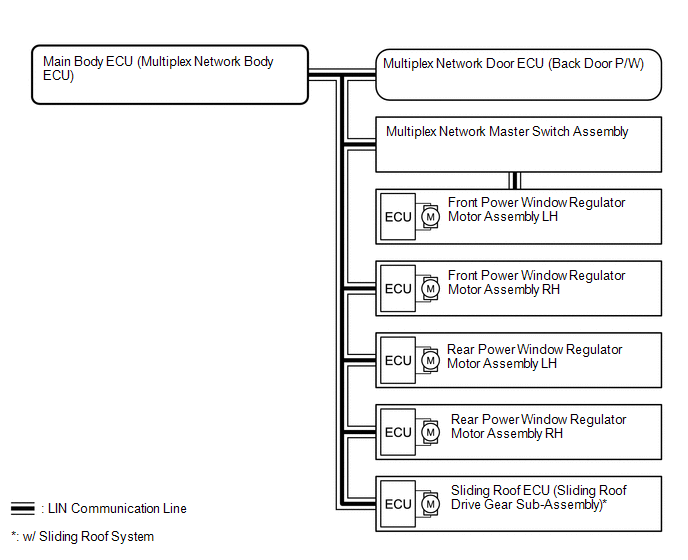

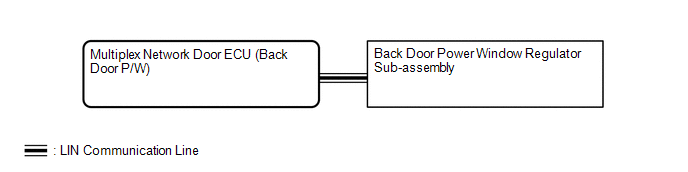

1. DOOR BUS LINES

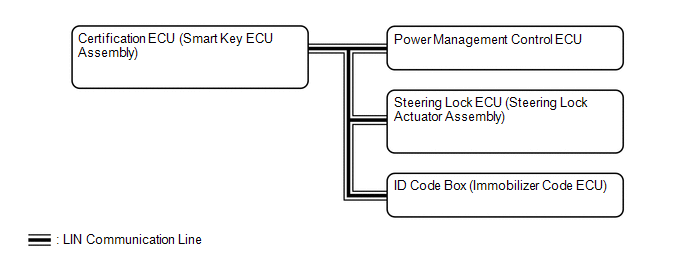

2. CERTIFICATION BUS LINES (w/ Smart Key System)

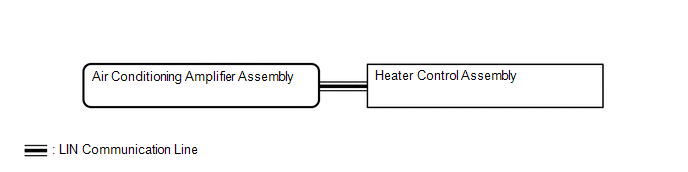

3. AIR CONDITIONING BUS LINES
4. SUB-LIN BUS LINES

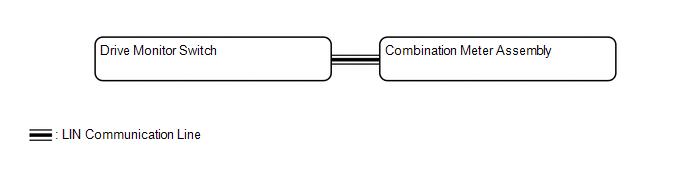

5. DRIVE MONITOR SWITCH BUS LINES (w/ CRAWL Control)
Parts Location
PARTS LOCATION
ILLUSTRATION
ILLUSTRATION
ILLUSTRATION
ILLUSTRATION
...
System Description
SYSTEM DESCRIPTION
1. LIN COMMUNICATION SYSTEM DESCRIPTION
The LIN communication system is used for communication between the components
in the tables below. If communication cannot be performed t ...
