Toyota 4Runner: Reassembly

REASSEMBLY

CAUTION / NOTICE / HINT

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.

HINT:

  • Use the same procedure for the RH and LH sides.
  • The procedure listed below is for the LH side.

PROCEDURE

1. INSTALL NO. 3 SEAT LEG ASSEMBLY LH

(a) Install the seat cushion under carpet LH to the No. 3 seat leg assembly LH with the 4 clips.

2. INSTALL NO. 3 SEATBACK FRAME SUB-ASSEMBLY LH

(a) Using a T45 "TORX" socket wrench, install the seatback frame with the 4 "TORX" bolts.

Torque:

42 N·m {428 kgf·cm, 31 ft·lbf}

3. INSTALL NO. 2 SEAT LOCK CABLE

(a) Twist the cable end in the direction indicated by the arrow to connect it.

Text in Illustration

*1

Clamp

*2

Cable End


(b) Attach the clamp to install the cable.

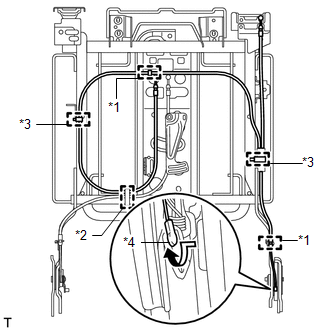

4. INSTALL FOLD SEAT LOCK CONTROL CABLE SUB-ASSEMBLY

(a) Twist the cable end in the direction indicated by the arrow to connect it.

Text in Illustration

*1

Clamp A

*2

Clamp B

*3

Cable Tie

*4

Cable End


(b) Attach the 2 clamps labeled A to install the cable.

(c) Install the clamp labeled B together with the No. 2 seat lock cable.

(d) Install 2 new cable ties.

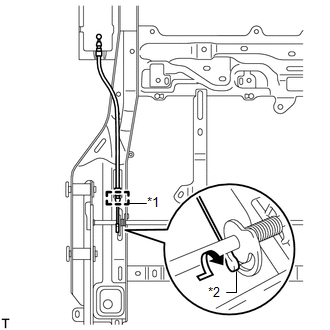

5. INSTALL REAR SEAT LOCK RELEASE STRAP ASSEMBLY

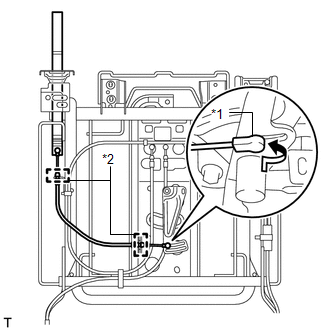

(a) Twist the cable end in the direction indicated by the arrow to connect it.

Text in Illustration

*1

Cable End

*2

Clamp


(b) Attach the 2 clamps to install the strap.

6. INSTALL REAR SEAT LOCK RELEASE STRAP ASSEMBLY (for RH Side)

(a) Twist the cable end in the direction indicated by the arrow to connect it.

Text in Illustration

*1

Cable End

*2

Clamp

*3

Cable Tie


(b) Attach the 3 clamps to install the strap.

(c) Install 2 new cable ties.

7. INSTALL REAR NO. 2 SEAT OUTER RECLINING COVER RH

(a) Attach the 2 claws and guide to install the cover.

(b) Install the screw.

8. INSTALL REAR NO. 2 SEAT INNER RECLINING COVER RH

(a) Attach the 5 claws to install the cover.

9. INSTALL REAR NO. 2 SEAT OUTER RECLINING COVER LH

(a) Attach the 2 claws and guide to install the cover.

(b) Install the screw.

10. INSTALL REAR NO. 2 SEAT INNER RECLINING COVER LH

(a) Attach the 4 claws to install the cover.

11. INSTALL REAR NO. 3 SEAT PROTECTOR LH

(a) Attach the 4 claws to install the 2 protectors.

12. INSTALL REAR SEAT HEADREST ASSEMBLY

(a) Install the headrest with the 3 nuts.

Torque:

14 N·m {143 kgf·cm, 10 ft·lbf}

13. INSTALL REAR SEAT HEADREST CABLE

(a) Twist the 2 cable ends in the direction indicated by the arrow to connect them.

Text in Illustration

*1

Cable End

*2

Clamp


(b) Attach the 2 clamps to install the cable.

14. INSTALL REAR SEAT HEADREST COVER

(a) Attach the 2 claws and guide to install the cover.

(b) Install the 2 screws.

15. INSTALL REAR NO. 2 SEATBACK EDGE PROTECTOR

(a) Install the protector to the seatback pad with 5 new tack pins.

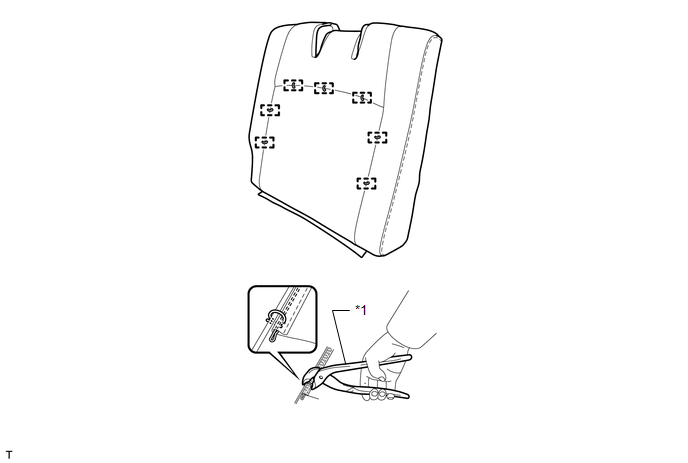

16. INSTALL NO. 3 SEATBACK COVER SUB-ASSEMBLY LH

(a) Using hog ring pliers, install the seatback cover to the seatback pad with 7 new hog rings.

Text in Illustration

*1

Hog Ring Pliers

NOTICE:

  • Be careful not to damage the cover.
  • When installing the hog rings, avoid wrinkling the cover.

17. INSTALL SEATBACK COVER WITH PAD

(a) Attach the 8 clips.

(b) Attach the hooks to install the seatback cover with pad.

18. INSTALL REAR SEAT NO. 1 COVER BEZEL

(a) Pass the strap through the bezel hole.

(b) Attach the guide to install the bezel.

(c) Install the 2 screws.

19. INSTALL REAR SEATBACK LOCK HOOK

(a) Install the lock hook.

20. INSTALL REAR SEATBACK BOARD SUB-ASSEMBLY LH

(a) Attach the 7 clips to install the board.

21. INSTALL REAR SEAT LOCK RELEASE LEVER ASSEMBLY

(a) Twist the 2 cable ends in the direction indicated by the arrow to connect them.

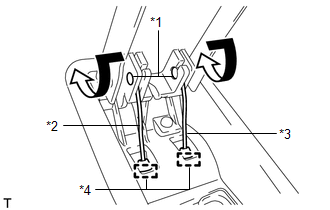

Text in Illustration

*1

Cable End

*2

No. 2 Seat Lock Cable

*3

Fold Seat Lock Control Cable

*4

Clamp


(b) Attach the 2 clamps.

(c) Attach the hook to install the lever.

(d) Install the 2 screws.

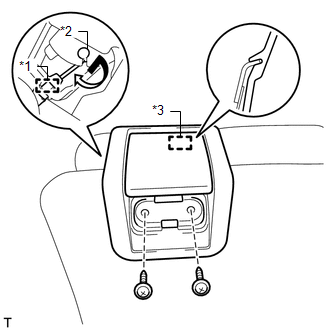

22. INSTALL REAR NO. 2 SEATBACK LOCK STRIKER COVER

(a) Attach the guide and claw to install the cover.

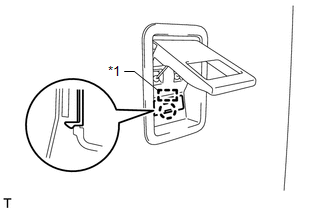

Text in Illustration

*1

Guide


23. INSTALL ROPE HOOK ASSEMBLY

(a) Install the rope hook with the bolt.

Torque:

6.0 N·m {61 kgf·cm, 53 in·lbf}

(b) Attach the 2 claws to close the cover.


24. INSTALL REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY LH

(a) Twist the cable end in the direction indicated by the arrow to connect it.

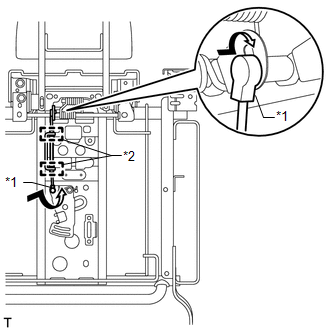

Text in Illustration

*1

Clamp

*2

Cable End

*3

Guide


(b) Attach the clamp.

(c) Attach the guide to install the lever.

(d) Install the 2 screws.

25. INSTALL REAR NO. 1 SEATBACK LOCK STRIKER COVER

(a) Attach the guide and claw to install the cover.

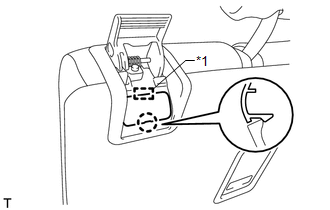

Text in Illustration

*1

Guide

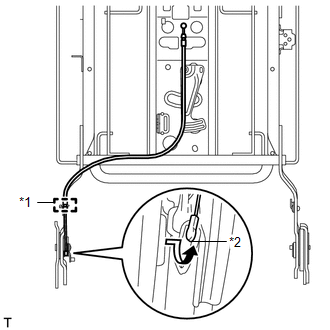

26. INSTALL REAR SEAT LOCK CONTROL CABLE LH

(a) Twist the cable end in the direction indicated by the arrow to connect it.

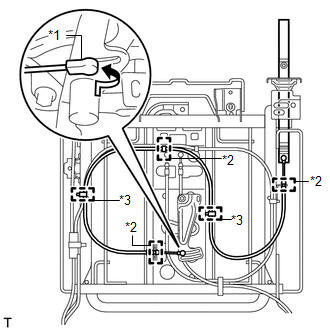

Text in Illustration

*1

Clamp

*2

Cable End


(b) Attach the clamp to install the cable.

27. INSTALL REAR SEAT CUSHION INNER HINGE COVER LH

(a) Attach the guide to install the cover.

(b) Install the clip and screw.

28. INSTALL REAR SEAT CUSHION INNER HINGE COVER RH

(a) Attach the guide to install the cover.

(b) Install the clip and screw.

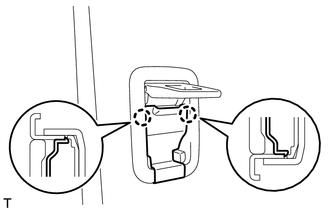

29. INSTALL REAR NO. 3 SEAT LEG COVER LH

(a) Attach the 2 claws to install the cover.

30. INSTALL REAR SEAT LEG COVER LH

(a) Attach the 5 clips and 3 hooks to install the cover.

(b) Install the clip.

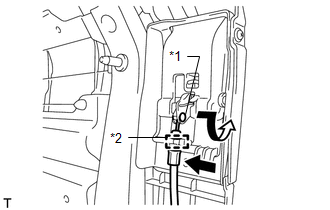

31. INSTALL SEAT TRACK LOCK LEVER

(a) Attach the 2 guides.

(b) Install the lever with the screw.

(c) Twist the cable end in the direction indicated by the arrow to connect it.

Text in Illustration

*1

Cable End

*2

Clamp


(d) Attach the clamp.

32. INSTALL 3RD SEAT LINK SUB-ASSEMBLY LH

(a) Attach the 4 guides and 2 claws to install the link.

(b) Install the 3 clips.

33. INSTALL NO. 2 SEAT CUSHION FRAME SUB-ASSEMBLY LH

(a) Using a T40 "TORX" socket wrench, install the seat cushion frame with the 4 "TORX" bolts.

Torque:

25 N·m {255 kgf·cm, 18 ft·lbf}

(b) Pull out the seat cushion frame.

34. INSTALL REAR NO. 2 SEAT CUSHION MOULDING

(a) Attach the 2 claws to install the moulding.

(b) Install the 2 screws.

35. INSTALL REAR NO. 2 SEAT CUSHION PROTECTOR

(a) Install the protector to the seat cushion pad with 5 new tack pins.

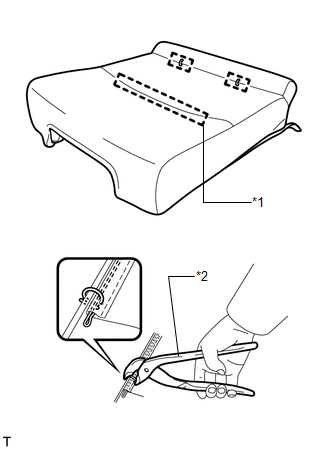

36. INSTALL NO. 3 SEAT CUSHION COVER SUB-ASSEMBLY LH

(a) Using hog ring pliers, install the seat cushion cover to the seat cushion pad with 2 new hog rings.

Text in Illustration

*1

Fastener

*2

Hog Ring Pliers

NOTICE:

  • Be careful not to damage the cover.
  • When installing the hog rings, avoid wrinkling the cover.

(b) Attach the fastener.

37. INSTALL SEAT CUSHION COVER WITH PAD

(a) Attach the 2 hooks to install the seat cushion cover with pad.

(b) Attach the 2 hooks.

(c) Install the 2 clips to close the cover.

(d) Close the 2 fasteners.

(e) Attach the 2 fasteners.

38. INSTALL REAR NO. 1 SEAT CUSHION MOULDING

(a) Attach the 4 guides and 2 claws to install the moulding.

(b) Install the 2 clips.

39. INSTALL REAR NO. 2 SEAT INNER BELT ASSEMBLY LH


40. INSTALL REAR SEAT LOWER CUSHION HINGE COVER RH

(a) Attach the guide and 2 claws to install the cover.

(b) Install the 2 screws.

41. INSTALL REAR SEAT LOWER CUSHION HINGE COVER LH

(a) Attach the 3 claws to install the cover.

(b) Install the 2 screws.

42. INSTALL REAR SEAT CAP

(a) Install the 2 caps.
