Toyota 4Runner: Relay

Toyota 4Runner Service Manual / Vehicle Interior / Lighting (int) / Relay

On-vehicle Inspection

ON-VEHICLE INSPECTION

PROCEDURE

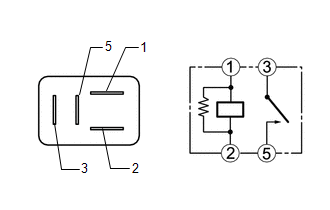

1. INSPECT DOME RELAY

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
3 - 5	Voltage is not applied between terminals 1 and 2	10 kΩ or higher
3 - 5	Voltage is applied between terminals 1 and 2	Below 1 Ω

If the result is not as specified, replace the DOME relay.
