DESCRIPTION
When there is a short to GND in the side auto step motor hall sensor power circuit, the side auto step controller ECU assembly does not operate the automatic running board.
|
DTC No. |
Detection Condition |
Trouble Area |
|---|---|---|
|
31 |
The side auto step motor hall sensor voltage is less than 4 V when the automatic running board is in operation. |
|

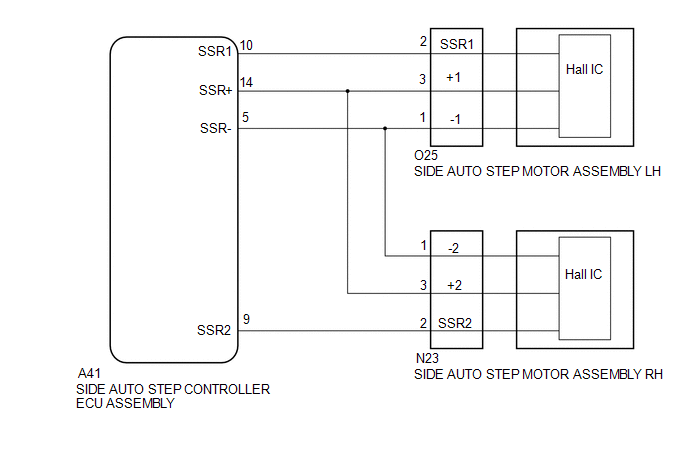

WIRING DIAGRAM
PROCEDURE
|
1. |
CHECK HARNESS AND CONNECTOR (SIDE AUTO STEP MOTOR POWER SOURCE) |

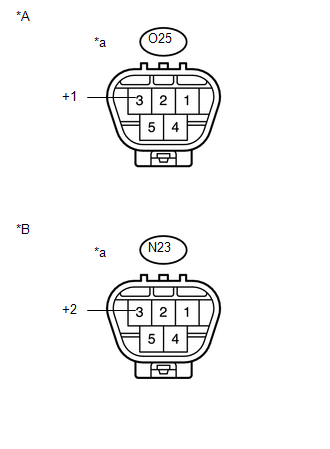

(a) Disconnect the O25*1 and N23*2 side auto step motor assembly connector.
|
(b) Measure the voltage according to the value(s) in the table below. Standard Voltage: for LH
for RH
|
|
| OK | |
REPLACE SIDE AUTO STEP MOTOR ASSEMBLY |
|
|
2. |
CHECK HARNESS AND CONNECTOR (SIDE AUTO STEP MOTOR - SIDE AUTO STEP CONTROLLER ECU) |
(a) Disconnect the A41 side auto step controller ECU assembly connector.
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
A41-14 (SSR+) - Body Ground |
Always |
10 kΩ or higher |
|
A41-14 (SSR+) - A41-5 (SSR-) |
Always |
10 kΩ or higher |
| OK | |
REPLACE SIDE AUTO STEP CONTROLLER ECU ASSEMBLY |
| NG | |
REPAIR OR REPLACE HARNESS OR CONNECTOR |
