DESCRIPTION
Refer to "SRS Warning Light Remains ON" (See page
).
WIRING DIAGRAM
Refer to "SRS Warning Light Remains ON" (See page
).
CAUTION / NOTICE / HINT
NOTICE:
When disconnecting the cable from the negative (-) battery terminal while performing
repairs, some systems need to be initialized after the cable is reconnected (See
page ).
PROCEDURE
1. |
CHECK BATTERY |
(a) Measure the voltage of the battery.
Standard voltage:
11 to 14 V
NG | ![]() |
REPLACE OR RECHARGE BATTERY |
|
2. |
CHECK CONNECTORS |
(a) Turn the ignition switch off.
(b) Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
(c) Check that the connectors are properly connected to the combination meter.
OK:
The connectors are properly connected.
NG | ![]() |
CONNECT CONNECTORS PROPERLY |
|
3. |
CHECK HARNESS AND CONNECTOR (SOURCE VOLTAGE OF COMBINATION METER) |
(a) Turn the ignition switch off. |
|
(b) Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
(c) Disconnect the F14 connector from the combination meter.
(d) Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
(e) Measure the voltage according to the value(s) in the table below.
Standard Voltage:
Tester Connection |
Switch Condition |
Specified Condition |
---|---|---|
F14-17 (IG+) - F14-20 (E1) |
Ignition switch ON |
11 to 14 V |
F14-15 (B) - F14-20 (E1) |
Always |
11 to 14 V |

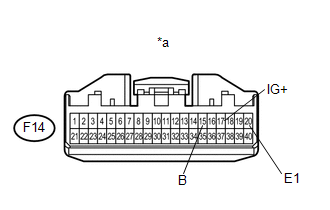

*a |
Front view of wire harness connector (to Combination Meter) |
NG | ![]() |
REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
4. |
CHECK SRS WARNING LIGHT (SHORT TO GROUND) |
(a) Turn the ignition switch off.
(b) Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
(c) Connect the connector to the combination meter.
(d) Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
(e) Turn the ignition switch to ON.
(f) Check the SRS warning light condition.
NOTICE:
Make sure that nobody is in the vehicle.
OK:
After the primary check period, the SRS warning light goes off for approximately 10 seconds and then remains on.
HINT:
The primary check period is approximately 6 seconds after the ignition switch is turned to ON.
OK | ![]() |
REPLACE CENTER AIRBAG SENSOR ASSEMBLY |
NG | ![]() |
GO TO METER / GAUGE SYSTEM |
