Toyota 4Runner: The indicator and buzzer
When a sensor detects an obstacle, the direction of the obstacle is indicated and the buzzer sounds.
Sensor operation and distance to an obstacle
The system operates when the vehicle approaches an obstacle, as shown by the following table.

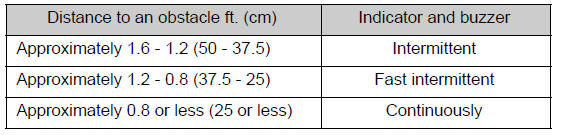

1. Rear corner sensors

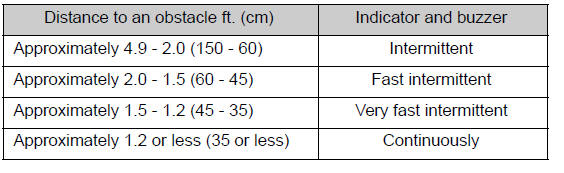

2. Rear center sensors
Intuitive parking assist
The distance from your vehicle to nearby obstacles when parallel parking
or maneuvering into a garage is measured by the sensors and communicated via an
indicator and a buzzer. Always check the su ...
Detection range of the sensors
1. Approximately 1.6 ft. (50 cm) 2. Approximately 4.9 ft. (150 cm)
The diagram shows the detection range of the sensors. Note that the sensors
cannot detect obstacles that are extremely close to ...
