Toyota 4Runner: Transmission Control Cable

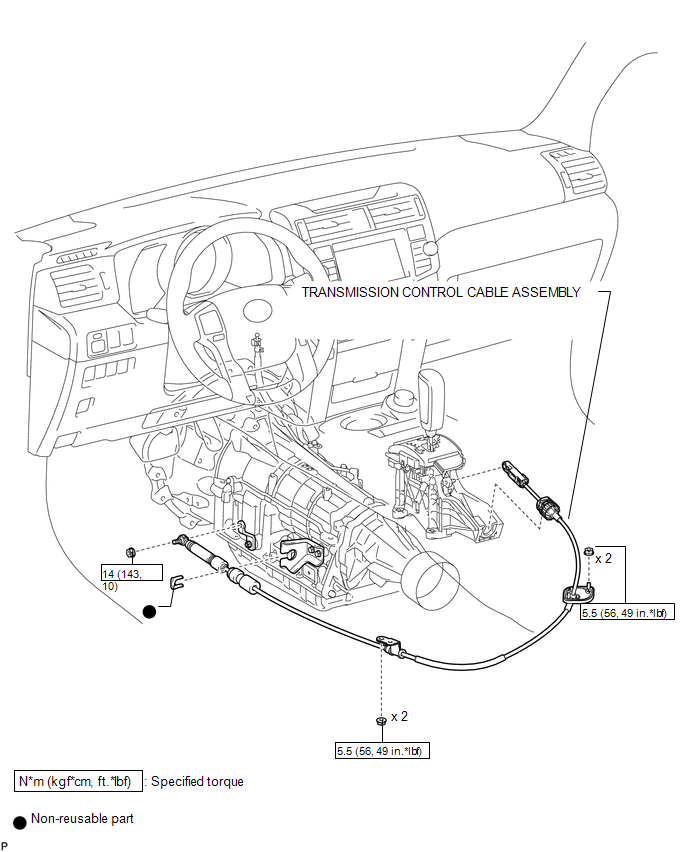

Components

COMPONENTS

ILLUSTRATION


Removal

REMOVAL

PROCEDURE

1. REMOVE CONSOLE BOX ASSEMBLY

(a) Remove the console box assembly (See page
).

2. REMOVE TRANSMISSION CONTROL CABLE ASSEMBLY

(a) Move the shift lever to N.

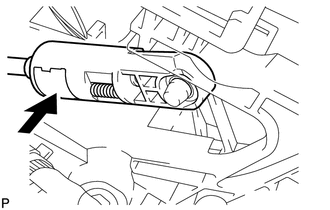

(b) Disconnect the transmission control cable end from the shift lever.

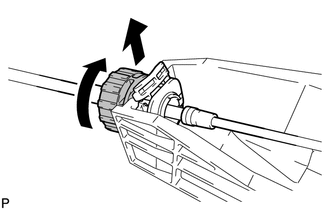

(c) Rotate the socket counterclockwise approximately 180° and, while holding the nut in that position, disconnect the transmission control cable from the shift lever retainer.

NOTICE:

Do not over-rotate the nut as it will come off the internal spring and the transmission control cable will not be reusable.

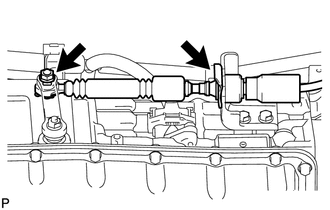

(d) Remove the nut and clip, and disconnect the transmission control cable assembly from the automatic transmission.

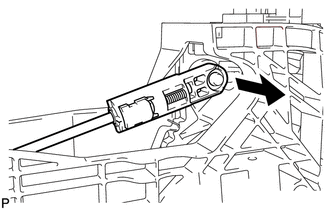

(e) Disconnect the end of the transmission control cable from the shift lever assembly.

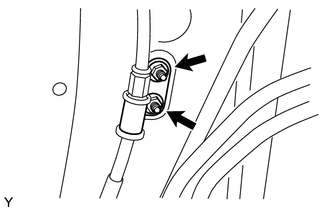

(f) Remove the 2 nuts and disconnect the transmission control cable support.

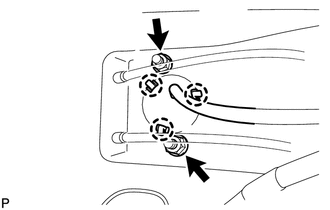

(g) Remove the 2 nuts and detach the 3 claws, and then pull out the transmission control cable.


Installation

INSTALLATION

PROCEDURE

1. INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY

(a) Insert the transmission control cable from the vehicle outside, and attach the 3 claws of the cable retainer.

(b) Install the 2 nuts.

Torque:

5.5 N·m {56 kgf·cm, 49 in·lbf}

(c) Connect the transmission control cable to the transmission control cable bracket with a new clip, and connect the cable end to the control shaft lever with the nut.

Torque:

14 N·m {143 kgf·cm, 10 ft·lbf}

(d) Connect the transmission control cable support with the 2 nuts.

Torque:

5.5 N·m {56 kgf·cm, 49 in·lbf}

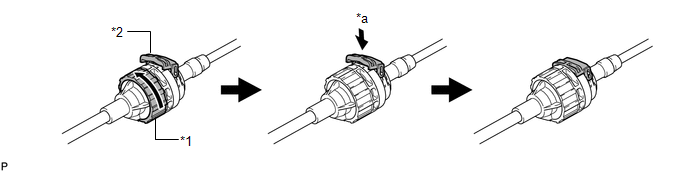

(e) Turn the socket of the transmission control cable 180° counterclockwise. While holding the socket in place, push in the lock piece until the lock piece clicks twice.

NOTICE:

Do not over-rotate the socket as it will come off the internal spring and the transmission control cable will not be reusable.

Text in Illustration

*1

Socket

*2

Lock Piece

*a

Push in

-

-

HINT:

If the lock piece cannot be pushed in, slightly turn the socket clockwise and then push in the lock piece again.

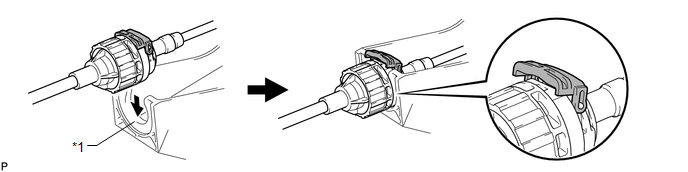

(f) Install the outer part of the transmission control cable to the shift lever retainer. Check that the socket and lock piece are positioned at original position.

Text in Illustration

*1

Shift Lever Retainer

-

-

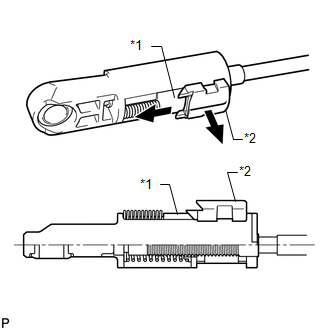

(g) Slide the slider in the direction shown in the illustration and pull out the lock piece.

Text in Illustration

*1

Slider

*2

Lock Piece

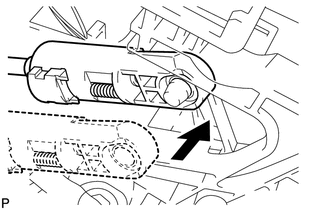

(h) Connect the end of the cable to the shift lever.

NOTICE:

  • Make sure that the lock piece is pulled up.
  • Push on the end of the cable all the way to the base of the pin.

(i) Push the lock piece into the adjuster case and lock it.

NOTICE:

Make sure that the lock piece is completely locked by the slider.


2. INSTALL REAR CONSOLE BOX ASSEMBLY

(a) Install the console box (See page ).
