Toyota 4Runner: Components

COMPONENTS

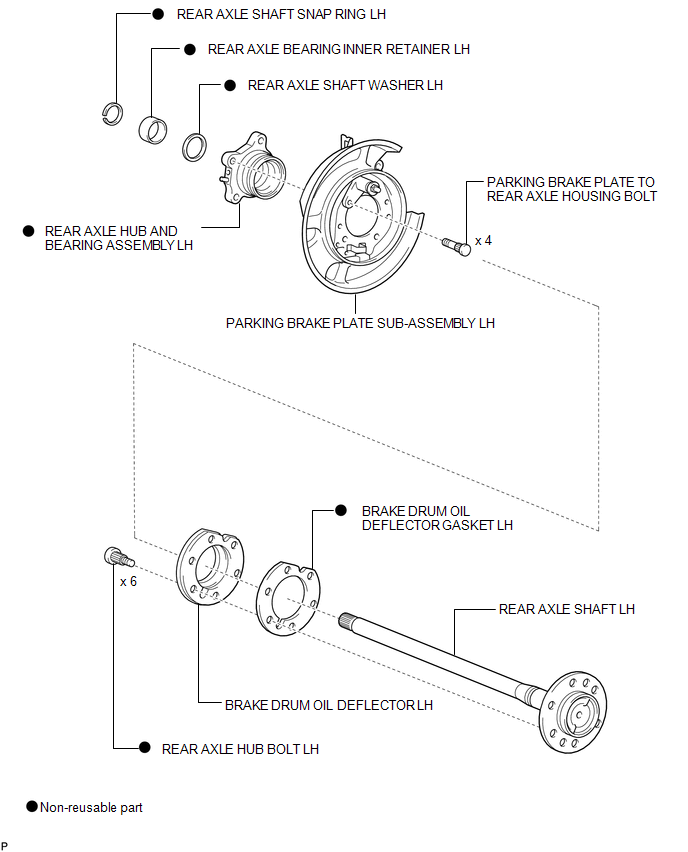

ILLUSTRATION

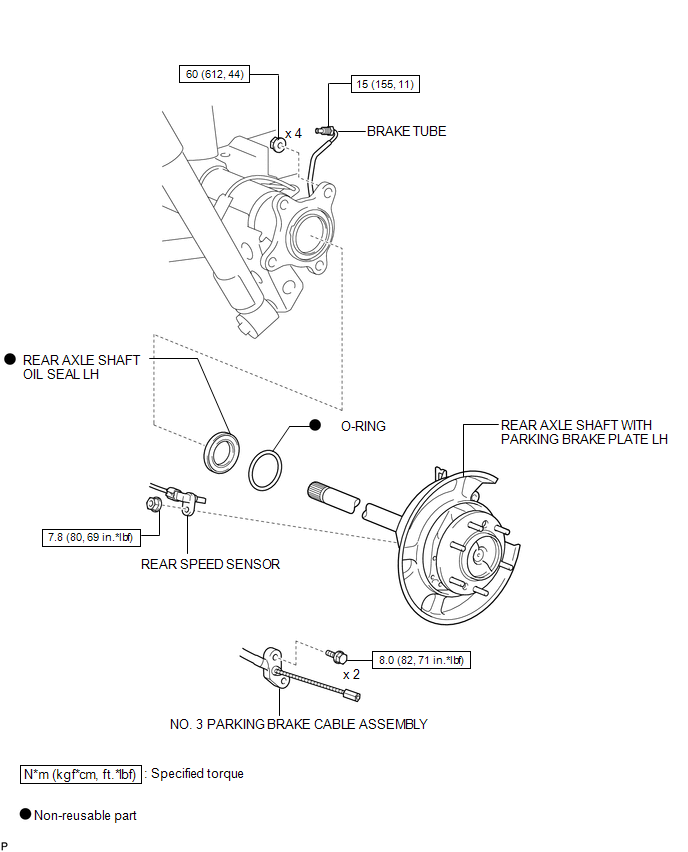

ILLUSTRATION


Rear Axle Shaft
...

Disassembly
DISASSEMBLY PROCEDURE 1. REMOVE REAR AXLE SHAFT SNAP RING LH (a) Using a snap ring expander, remove the snap ring. 2. REMOVE REAR AXLE SHAFT LH (a) Using SST and a press, press out the rear a ...
