Toyota 4Runner Service Manual / Drivetrain / Axle And Differential / Rear Differential Carrier Assembly(w/ Differential Lock) / Components

COMPONENTS

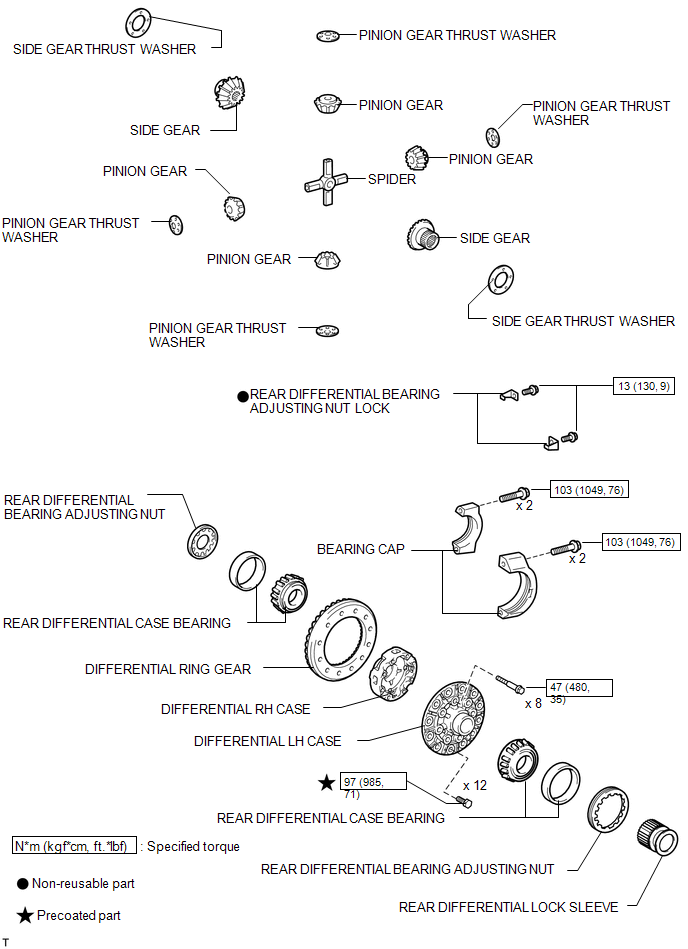

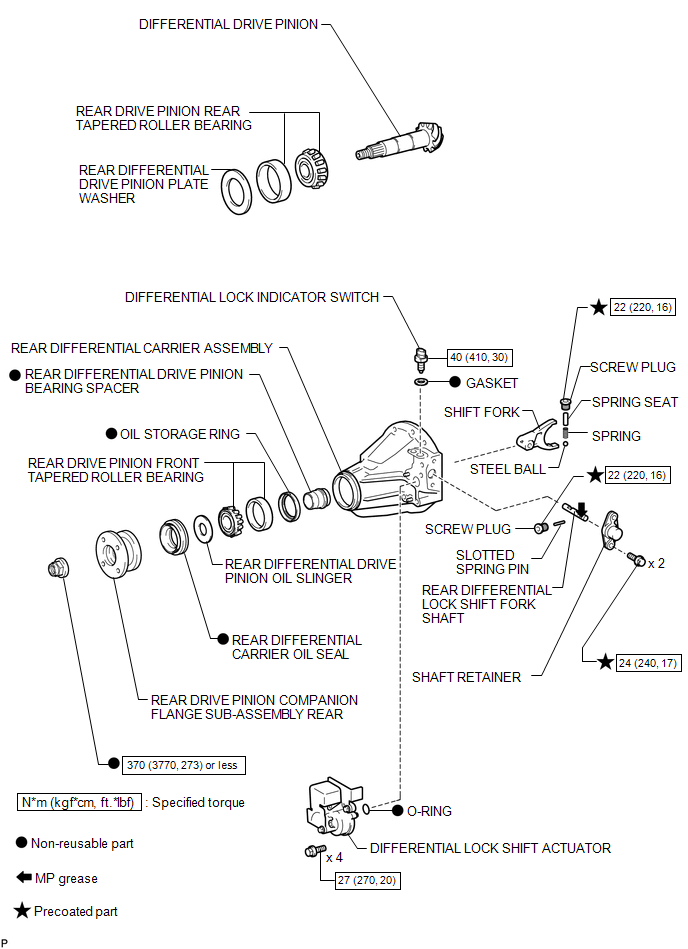

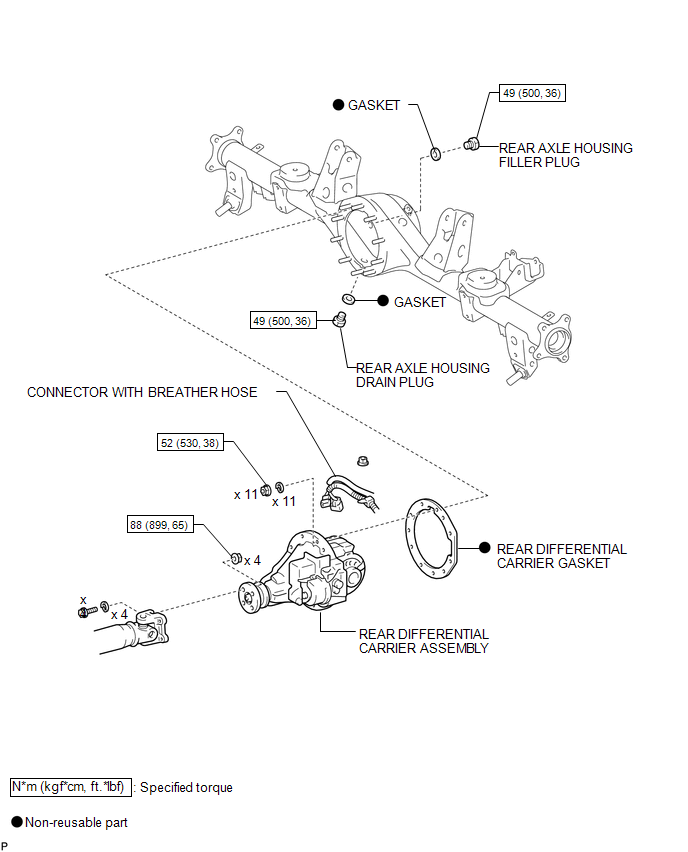

ILLUSTRATION

Rear Differential Carrier Assembly(w/ Differential Lock)

...

Removal

REMOVAL PROCEDURE 1. REMOVE REAR AXLE SHAFT LH (a) Remove the rear axle shaft LH (See page ). 2. REMOVE REAR AXLE SHAFT RH HINT: Use the same procedure described for the LH side. 3. REMOVE P ...
