Toyota 4Runner Service Manual / Suspension / Front Suspension / Front Lower Suspension Arm / Inspection

INSPECTION

PROCEDURE

1. INSPECT FRONT NO. 1 SUSPENSION LOWER ARM SUB-ASSEMBLY LH

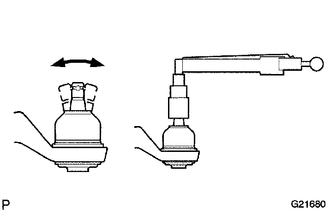

(a) As shown in the illustration, flip the ball joint stud back and forth 5 times before installing the nut.

(b) Using a torque wrench, turn the nut continuously at a rate of 3 to 5 seconds per turn and take a torque reading on the 5th turn.

Standard turning torque:

0.29 to 2.94 N*m (2.96 to 30.0 kgf*cm, 2.57 to 26.02 in.*lbf) or less

Disassembly

DISASSEMBLY PROCEDURE 1. REMOVE FRONT NO. 1 LOWER ARM BUSH LH (a) Using a chisel and hammer, pry the flange of the bush outward. (b) ...

Installation

INSTALLATION CAUTION / NOTICE / HINT HINT: Use the same procedure for the RH and LH sides. The procedure listed below is for the LH side. A bolt without a torque specification is sh ...
