Toyota 4Runner: Installation

Toyota 4Runner Service Manual / Vehicle Interior / Seat / Front Seatback Heater / Installation

INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.

HINT:

Use the same procedure for the RH and LH sides.
The procedure listed below is for the LH side.

PROCEDURE

1. INSTALL FRONT SEATBACK HEATER ASSEMBLY LH

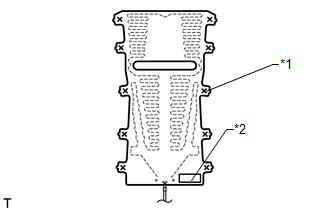

(a) Set the front seatback heater assembly LH in place with the name stamp side facing the separate type front seatback cover.

Text in Illustration

*1	Tack Pin
*2	Name Stamp

(b) Install the front seatback heater assembly LH with 10 new tack pins.

2. INSTALL SEPARATE TYPE FRONT SEATBACK COVER

3. INSTALL SEPARATE TYPE FRONT SEATBACK COVER WITH PAD

(a) w/o Climate Control Seat System:

(1) Install the seatback cover with pad to the separate type front seatback spring assembly.

(2) Attach the 4 claws to install the 2 front seat headrest supports.

(3) Attach the 2 hooks and connect the seatback cover bracket to the separate type front seatback spring assembly with the nut.

Torque:

5.5 N·m {56 kgf·cm, 49 in·lbf}

NOTICE:

After the seatback cover bracket is attached, make sure the seatback cover bracket is not twisted.

(4) Close the 2 fasteners and separate type front seatback cover.

Text in Illustration

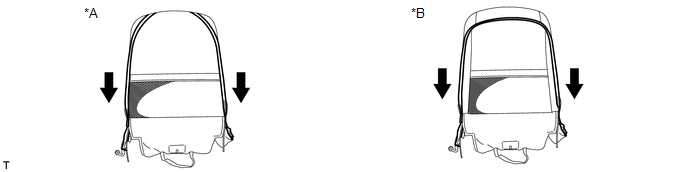

for Cloth Seat

for Leather Seat

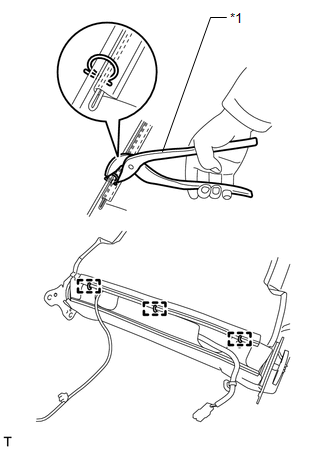

(5) Using hog ring pliers, install 3 new hog rings.

NOTICE:

Be careful not to damage the separate type front seatback cover.
Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type front seatback cover.

Text in Illustration

*1	Hog Ring Pliers

(6) Connect the seat heater connector and attach the wire harness clamp.

(7) Install the rubber band to the separate type front seat cushion spring assembly.

(b) w/ Climate Control Seat System:

(1) Install the seatback cover with pad to the seatback spring.

(2) Attach the 4 claws to install the 2 headrest supports.

(3) Attach the 2 hooks and connect the seatback cover bracket to the separate type front seatback spring assembly with the nut.

Torque:

5.5 N·m {56 kgf·cm, 49 in·lbf}

NOTICE:

After the seatback cover bracket is attached, make sure the seatback cover bracket is not twisted.

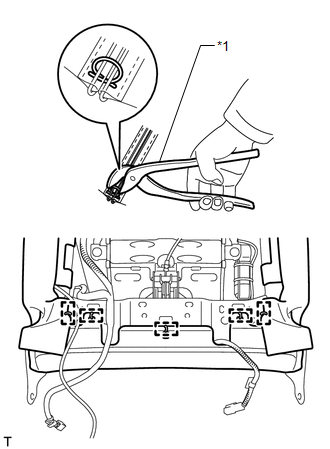

(4) Using hog ring pliers, install 5 new hog rings.

NOTICE:

Be careful not to damage the separate type front seatback cover.
Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type front seatback cover.

Text in Illustration

*1	Hog Ring Pliers

(5) Attach the 7 hooks.

(6) Connect the seat heater connector and attach the wire harness clamp.

4. INSTALL FRONT SEATBACK BOARD CLIP (w/ Climate Control Seat System)

Click here

5. INSTALL FRONT SEATBACK BOARD SUB-ASSEMBLY LH (w/ Climate Control Seat System)

6. INSTALL FRONT SEAT ASSEMBLY

(See page )
