Toyota 4Runner: Reassembly

Toyota 4Runner Service Manual / Drivetrain / Axle And Differential / Front Axle Hub(for 2wd) / Reassembly

REASSEMBLY

CAUTION / NOTICE / HINT

PROCEDURE

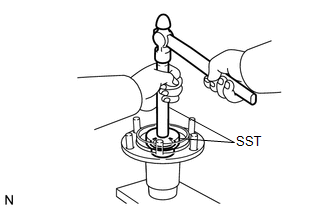

1. INSTALL PLUG

(a) Using the SST and a hammer, install a new plug.

SST: 09950-60010

09951-00450

SST: 09950-70010

09951-07100

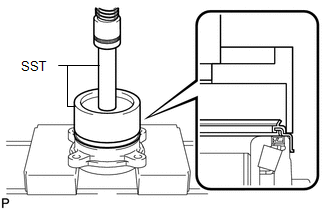

2. INSTALL FRONT AXLE HUB OIL SEAL LH

(a) Using SST and a press, press in a new oil seal.

SST: 09608-36010

SST: 09950-70010

09951-07100

NOTICE:

Do not damage the oil seal.

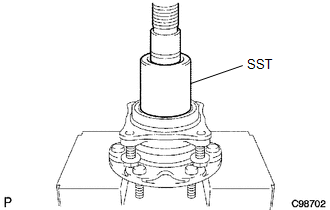

3. INSTALL FRONT AXLE WITH ABS ROTOR BEARING ASSEMBLY LH

(a) Using SST and a press, install a new bearing to the front axle hub.

SST: 09649-17010

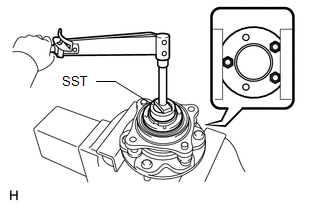

4. INSTALL FRONT WHEEL ADJUSTING NUT LH

(a) Using SST, install a new adjusting nut.

SST: 09318-12010

Torque:

275 N·m {2804 kgf·cm, 203 ft·lbf}
