Toyota 4Runner: Switching the display

Press .


Each time is pressed, the
display changes in the following order:

Track title → Track title/Artist name → Track title/Album name → Track title/Elapsed time

About iPod

• Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

• iPod is a trademark of Apple Inc., registered in the U.S. and other countries.

iPod functions

• When an iPod is connected and the audio source is changed to iPod mode, the iPod will resume play from the same point in which it was last used.

• Depending on the iPod that is connected to the system, certain functions may not be available. Disconnecting the device and reconnecting it once again may resolve some malfunctions.

iPod problems

To resolve most problems encountered when using your iPod, disconnect your iPod from the vehicle iPod connection and reset it.

For instructions on how to reset your iPod, refer to your iPod Owner's Manual.

Error messages

“iPod ERROR”: This indicates a problem in the iPod, inside the USB box or the connection between them.

“NO SONGS”: This indicates that there is no music data in the iPod.

“UPDATE YOUR iPod”: This indicates that the version of the iPod is not compatible.

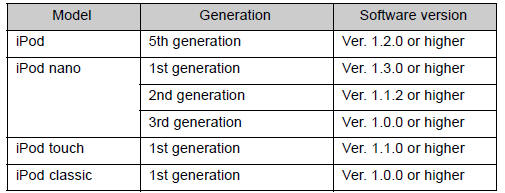

Compatible models


Depending on differences between models or software version etc., some models listed above might be incompatible with this system.

iPod 4th generation and earlier models are not compatible with this system.

iPhone, iPod mini, iPod shuffle and iPod photo are not compatible with this system.

Items related to standards and limitations are as follows:

• Maximum number of lists in a device: 9999 • Maximum number of songs in a device: 65025 • Maximum number of songs per list: 65025

CAUTION

Caution while driving

Do not connect iPod or operate the controls.

NOTICE

To prevent damage to iPod

• Do not leave iPod in the vehicle. The temperature inside may become high, resulting in damage to the player.

• Do not push down on or apply unnecessary pressure to the iPod while it is connected as this may damage the iPod or its terminal.

• Do not insert foreign objects into the port as this may damage the iPod or its terminal.

Selecting songs from a song list
Press (LIST). The current playlist is displayed. Turning to select the desired song. Press returns the screen from list display to the previous screen. Selecting songs Turn or press “ ...

Operating a USB memory
Connecting a USB memory enables you to enjoy music from the vehicle speakers. Connecting a USB memory Pull up the lid. Open the cover and connect a USB memory. Turn on the power of the USB m ...
