Toyota 4Runner: Rear Differential Lock Position Switch

Toyota 4Runner Service Manual / Drivetrain / Axle And Differential / Rear Differential Lock Position Switch

Components

COMPONENTS

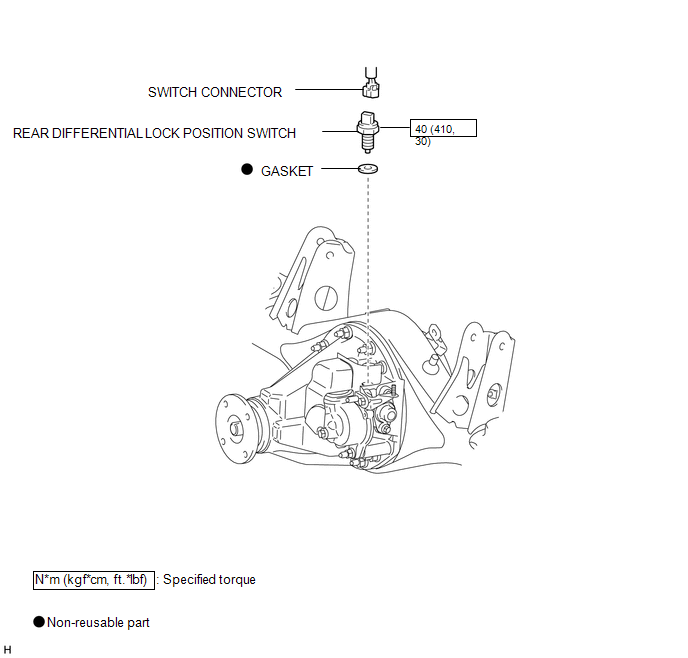

ILLUSTRATION


Inspection

INSPECTION

PROCEDURE

1. INSPECT REAR DIFFERENTIAL LOCK POSITION SWITCH

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Switch Condition

Specified Condition

1 (GND) - 2 (+B)

Pushed

Below 1 Ω

Released

100 kΩ or higher

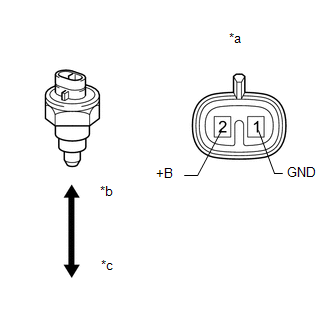

Text in Illustration

*a

Component without harness connected

(Rear Differential Lock Position Switch)

*b

Pushed

*c

Released

  • If the result is not as specified, replace the rear differential lock position switch.

Removal

REMOVAL

PROCEDURE

1. REMOVE REAR DIFFERENTIAL LOCK POSITION SWITCH

(a) Remove the rear differential lock position switch (See page ).


Installation

INSTALLATION

PROCEDURE

1. INSTALL REAR DIFFERENTIAL LOCK POSITION SWITCH

(a) Install the rear differential lock position switch (See page ).
