Toyota 4Runner: Smart key system
The following operations can be performed simply by carrying the electronic key on your person, for example in your pocket.
(The driver should always carry the electronic key.)

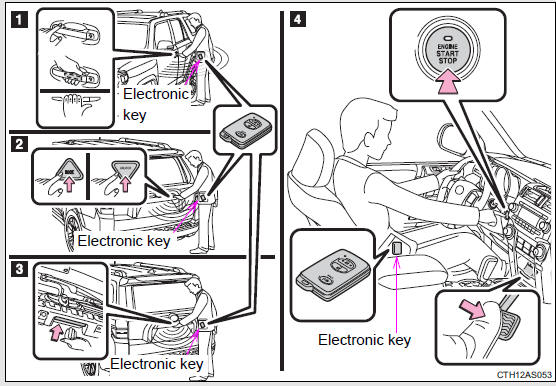

1. Locks and unlocks the side doors 2. Locks, unlocks and opens the back door 3. Opens the back door 4. Starts the engine
- Unlocking and locking the side doors (front door handles only)
- Opening the back door
- Unlocking and locking the back door
- Antenna location and effective range
Unlocking and locking the side doors (front door handles only)
Grip the handle to unlock the door.
Make sure to touch the sensor on the back of the handle.
The doors cannot be unlocked for 3 seconds after the doors are locked.
Touch the lock sensor (the in ...
